Stainless steel mounting pin Ø 14 x 68 mm – combination M8 external & M6 internal thread (V2A)

FeNau Ltd

Gelenkstift Edelstahl V2A Ø 14 mm- L = 68 mm- M8 Aussengewinde- M6 Innengewinde-88-1150232-240.68

$9.02*

Prices exclude VAT and are subject to delivery charges

Available now, delivery time: Lieferzeit 5-10 Werktage

Stk

Stock: 71

Product number: 88.1150232.240.68

EAN: 4067014000316

Weight: 0.08 kg

20,000 items in stock

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

Product information "Stainless steel mounting pin Ø 14 x 68 mm – combination M8 external & M6 internal thread (V2A)"

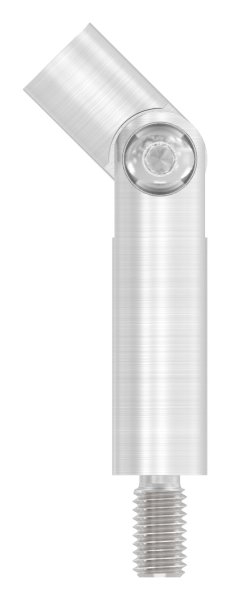

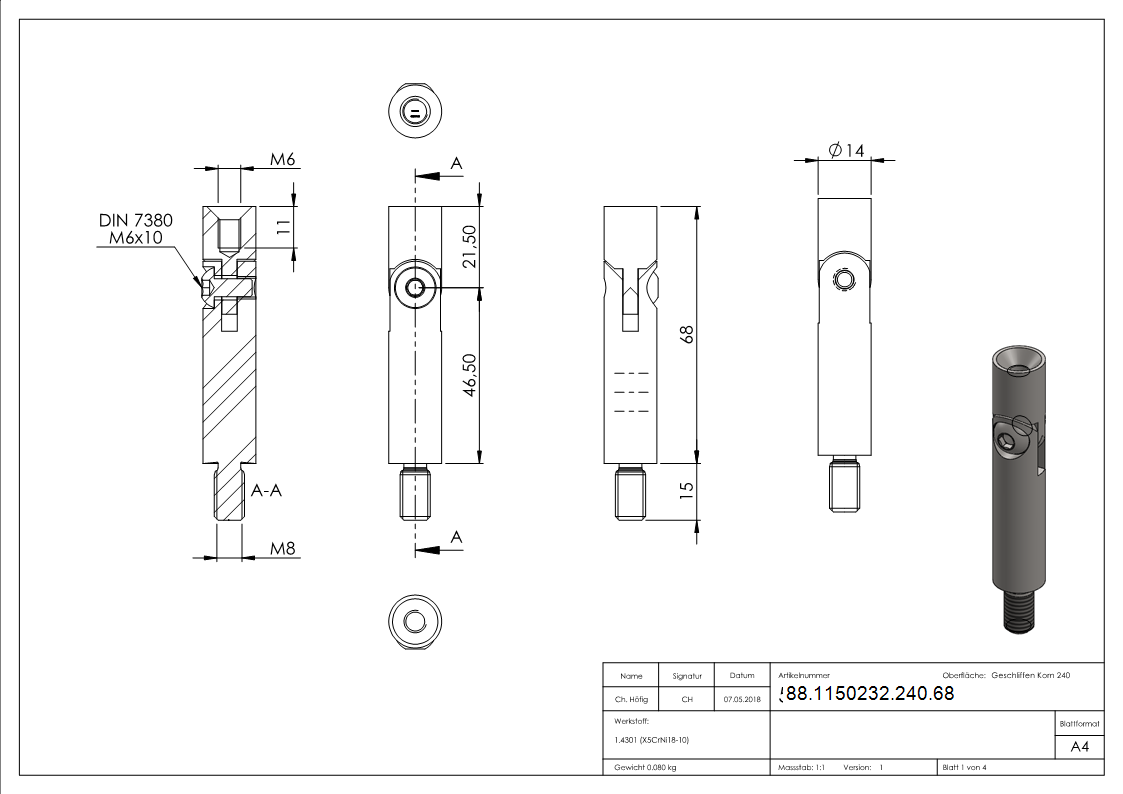

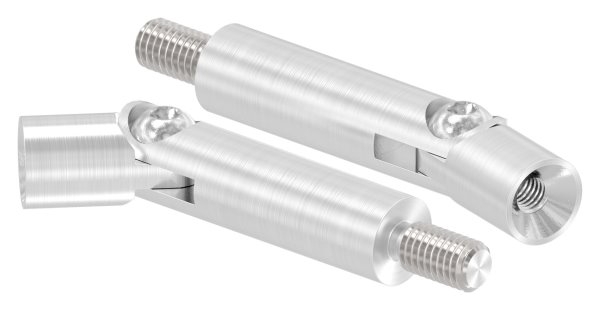

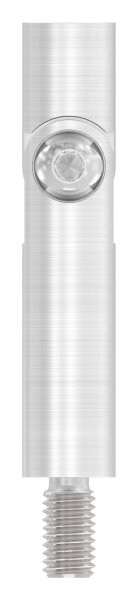

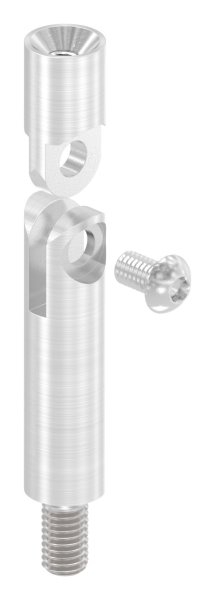

Hinge pin, Ø 14 mm, length: 68 mm, with M8 x 15 mm external thread, M6 x 15 mm internal thread at the top, V2A

Durchmesser:	Ø 14 mm
Form:	Gelenk
Gewinde :	Außen- & Innengewinde
Höhe:	68 mm
Werkstoff:	V2A
