Support pin, 135° bent, Ø 12 x 60 mm – with external and internal threads (V2A)
Product number:
11.2171.4
EAN:
4251412929830
Länge:
82 mm
Gewicht:
0.06 kg
Description
Product information "Support pin, 135° bent, Ø 12 x 60 mm – with external and internal threads (V2A)"
Pin | Dimensions: 60x12 mm | 135° bend | with external and internal threads | V2A
[ Technical details ] Made from 1.4301/V2A/AISI 304 stainless steel – 240-grit finish

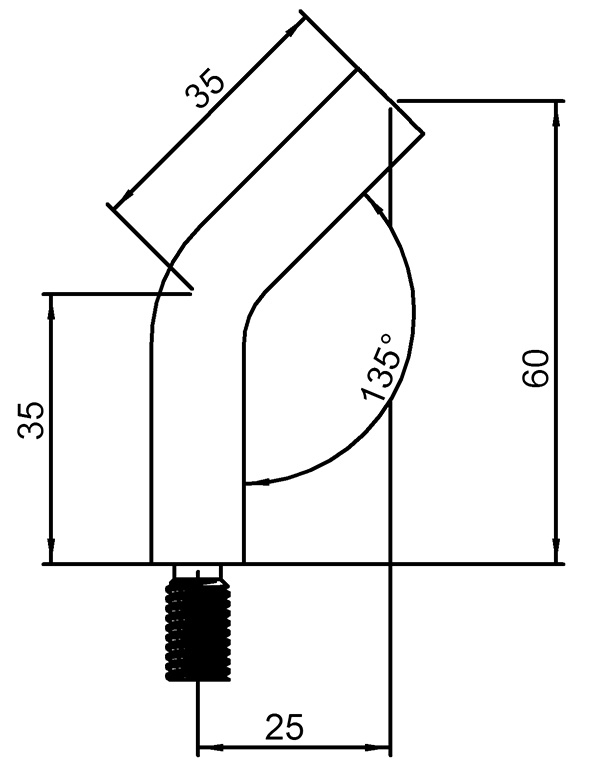

[ Specific details ] 135° bent; Length (excluding threads): 60 mm; Diameter: 12 mm

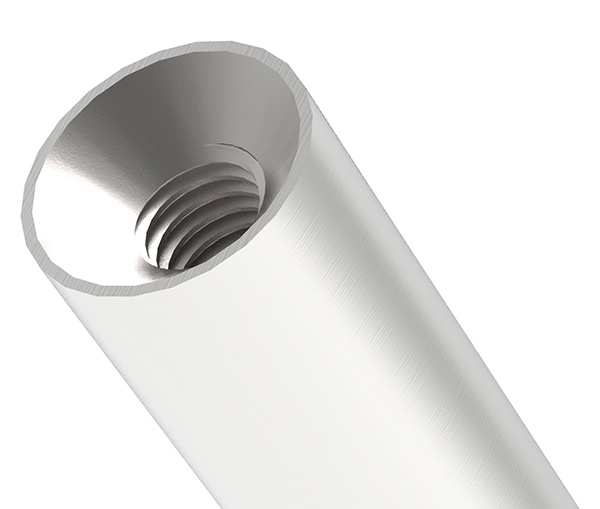

[ Further specific details ] External thread: M8 x 15 mm; Internal thread: M6 x 20 mm
Eigenschaften
| Durchmesser: | 12 mm |
|---|---|
| Form: | Stift |
| Gewinde : | Außen- & Innengewinde |
| Höhe: | 60 mm |
| Werkstoff: | V2A (1.4301) |
