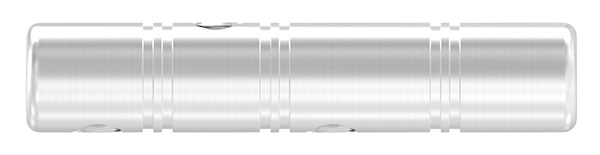

Threaded terminal for self-assembly | For 8 mm rope | with internal thread | V2A
$12.40*
Available now, delivery time: Lieferzeit 1-2 Werktage
Product information "Threaded terminal for self-assembly | For 8 mm rope | with internal thread | V2A"
[ Technical details ] Made from stainless
steel 1.4301/V2A/AISI 304[ Specific details ] Suitable for a cable with a diameter of 3 mm to 8 mm; with internal thread; for self-assembly; threads from M5 to M8

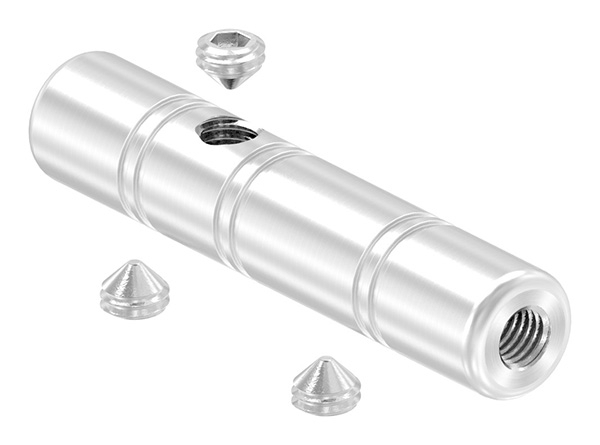

[ Application ] Insert the cable into the terminal and secure it with the included Allen clamp screw
[ Further specific details ]
Dimensions of threaded terminal for Ø 3 mm rope: A: M5; B: 60 mm; C: 40 mm; D: Ø 12 mm; E: 15 mm
Dimensions of threaded terminal for Ø 4 mm rope: A: M5; B: 60 mm; C: 40 mm; D: Ø 12 mm; E: 15 mm
Dimensions of threaded terminal for Ø 5 mm rope: A: M5; B: 70 mm; C: 40 mm; D: Ø 14 mm; E: 20 mm
Dimensions of threaded terminal for Ø 6 mm rope: A: M6; B: 70 mm; C: 40 mm; D: Ø 14 mm; E: 20 mm
Dimensions of threaded terminal for Ø 8 mm rope: A: M8; B: 80 mm; C: 60 mm; D: Ø 16 mm; E: 15 mm
| Form: | Gewindeterminal |
|---|
