V2A glass clamp for glass thicknesses of 1.5–10.76 mm, black powder-coated, set of 4

FeNau Ltd

Glasklemme V2A fuer Glasstaerke 1-5-10-76 mm schwarz pulverbeschichtet 4er Set-89-11ABL230P000SET4-A.4

$55.86*

Prices include VAT, plus delivery charges

Available now, delivery time: Lieferzeit 1-2 Werktage

Stock: 748

Product number: 89.11ABL230P000SET4-A.4

Weight: 0.831 kg

20,000 items in stock

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

Product information "V2A glass clamp for glass thicknesses of 1.5–10.76 mm, black powder-coated, set of 4"

Glass clamp in a handy set of 4

This set contains four sturdy glass clamps of the 230P model, made from durable V2A stainless steel. The clamps feature a high-quality powder coating in black (RAL 9005), which not only ensures a modern and attractive appearance but also offers additional protection. They are ideal for mounting glass or sheet metal panels on flat posts or walls and are therefore versatile for use in railing construction.

Technical details and compatibility

The glass clamps are designed for a wide range of panel thicknesses, offering maximum flexibility for your projects. Secure fastening is achieved via a clamp connection.

Product type: Glass clamp (Model 230P)
Material: V2A stainless steel (AISI 304)
Surface: Powder-coated
Colour: Black (RAL 9005)
Connection: For flat posts/walls
Suitable glass thickness: 1.5 mm to 10.76 mm

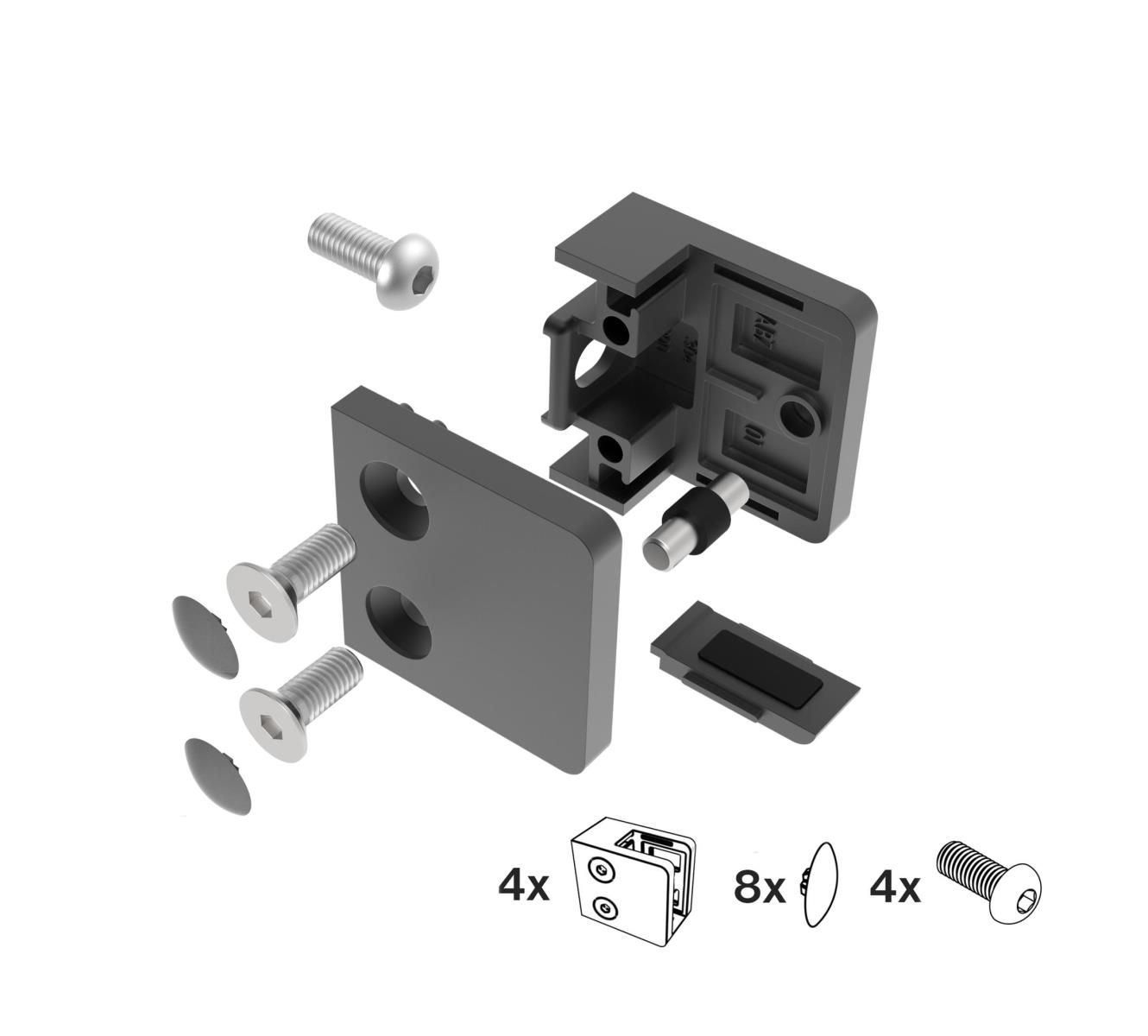

Comprehensive scope of delivery

The set is supplied ready for installation and includes all the necessary screws for securing the clamps. Please note that the seals required for glass installation are not included and must be ordered separately depending on the selected glass thickness.

Höhe:	45 mm
Länge:	45 mm
Werkstoff:	V2A
Ø Für Rohr \| Ø Außendurchmesser \| Ø Anschluss:	flach
Breite:	26 mm
