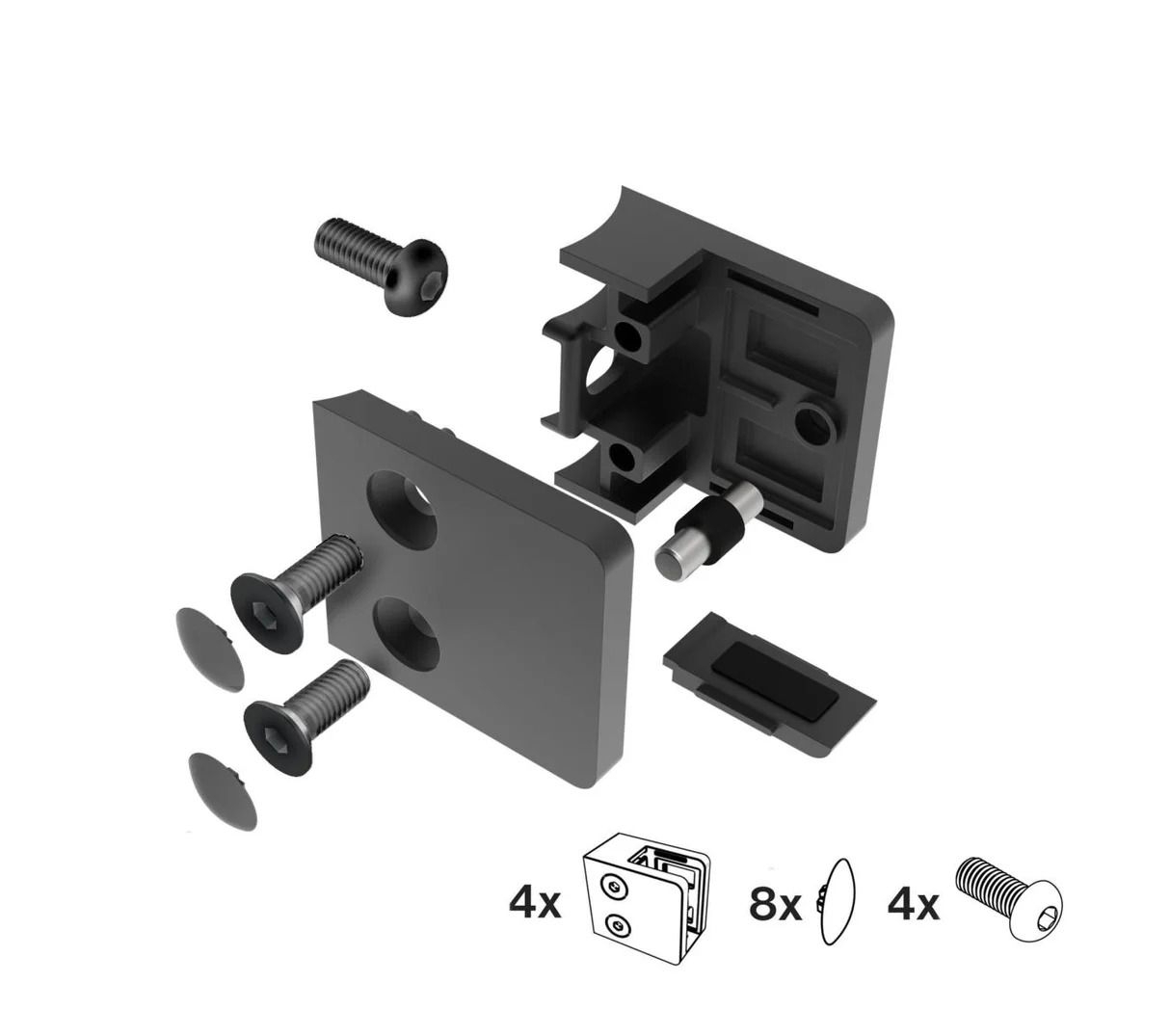

V2A glass clamp for 42.4 mm diameter tubing, black PVD-coated, set of 4

FeNau Ltd

Glasklemme V2A fuer Rohr Ø 42-4 mm schwarz PVD beschichtet 4er Set-18-2142SET-A.4_BLACK

$68.30*

Prices include VAT, plus delivery charges

Available now, delivery time: Lieferzeit 1-2 Werktage

Stk

Stock: 124

Product number: 18.2142SET-A.4_BLACK

Weight: 0.21 kg

20,000 items in stock

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

Product information "V2A glass clamp for 42.4 mm diameter tubing, black PVD-coated, set of 4"

Modern design meets functionality: glass clamp in black

This set contains four 230P model glass clamps, made from durable V2A stainless steel. The elegant black PVD coating gives your railing project a modern and stylish look whilst ensuring a robust, scratch-resistant surface. The clamps are specially designed for mounting on round posts or tubes with a diameter of 42.4 mm and are ideal for the secure fixing of glass or panel infills in balustrade systems.

Technical details at a glance

Product type: Glass clamp (Model 230P)
Material: V2A stainless steel (AISI 304)
Surface: PVD-coated, black
Connection: For round tube Ø 42.4 mm
Suitable thickness: 6 mm – 10.76 mm (glass) or 1.5 mm – 5 mm (sheet metal)
Fastening method: Clamp connection (locking pin can be used optionally)

Versatile application and installation

The glass clamps are ideal for indoor and outdoor use, for example on balcony and stair railings. Installation is straightforward via screw fixing to the post. The set includes the appropriate fixing screws for the clamp as well as cover caps for a neat finish. Please note that the rubber seals suitable for your glass thickness are not included and must be ordered separately.

Höhe:	45 mm
Länge:	45 mm
Werkstoff:	V2A
Ø Für Rohr \| Ø Außendurchmesser \| Ø Anschluss:	42,4 mm
Breite:	26 mm

Accessories

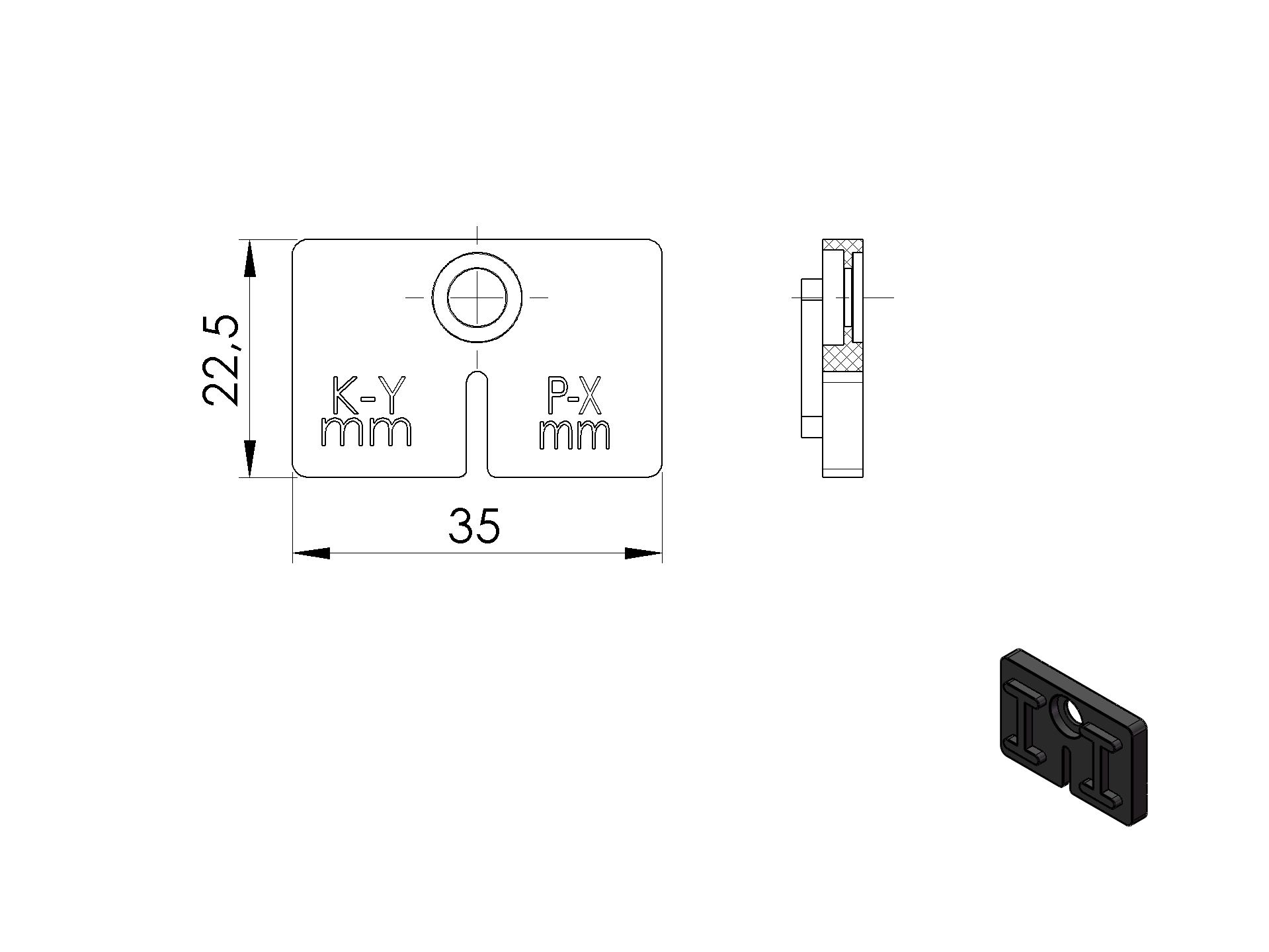

Gummieinlage fuer Glashalter- Glasstaerke 1-5-3-5 mm- schwarz-18-2101S-A.0

Paar

18.2101S-A.0

1 pair of rubber bands | for 1.5 mm | Model 230P

Available, : Lieferzeit 1-2 Werktage

$1.20*

Gummieinlage fuer Glashalter Modelle 2300- 230P- 23KP- Glas 2-4 mm-18-2102S-A.0

Paar

18.2102S-A.0

1 pair of rubber bands | for 2.0 mm | Model 230P

Available, : Lieferzeit 1-2 Werktage

$1.12*

Gummieinlage fuer Glashalter 3-5 mm Glasstaerke- Schwarz-18-2103S-A.0

Paar

18.2103S-A.0

1 pair of rubber rings | for 3.0 mm | Model 230P

Available, : Lieferzeit 1-2 Werktage

$1.12*

Gummieinlage fuer Glashalter 6-4 mm Glasstaerke- schwarz-18-2104S-A.0

Paar

18.2104S-A.0

1 pair of rubber rings | for 4.0 mm | Model 230P

Available, : Lieferzeit 1-2 Werktage

$1.12*

Gummieinlage fuer Glashalter- Gummi schwarz- Glasstaerke 5-7 mm-18-2105S-A.0

Paar

18.2105S-A.0

1 pair of rubber bands | 5.0 mm | Model 230P

Available, : Lieferzeit 1-2 Werktage

$0.74*

Gummieinlage fuer Glashalter- Glasstaerke 6-8 mm-18-2106S-A.0

Paar

18.2106S-A.0

1 pair of rubber rings | for 6.0 mm | Model 230P

Available, : Lieferzeit 1-2 Werktage

$0.74*

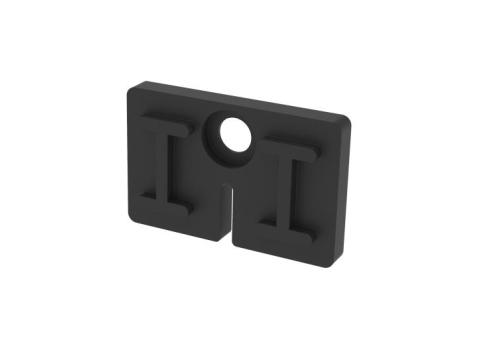

Gummieinlage fuer Glashalter Glasstaerke 6-76-8-76 mm Schwarz-18-2107S-A.0

Paar

18.2107S-A.0

1 pair of rubber rings | for 6.76 mm | Model 230P

Available, : Lieferzeit 1-2 Werktage

$0.74*

Gummieinlage fuer Glashalter- Gummi- t=8-76-10-76 mm-18-2109S-A.0

Paar

18.2109S-A.0

1 pair of rubber bands | 8.76 mm | Model 230P

Available, : Lieferzeit 1-2 Werktage

$0.74*

Gummieinlage fuer Glashalter- Glasstaerke 8-10 mm- schwarz-18-2108S-A.0

Paar

18.2108S-A.0

1 pair of rubber rings | for 8.00 mm | Model 230P

Available, : Lieferzeit 1-2 Werktage

$0.74*

Tip

Gummieinlage fuer Glashalter- Glasstaerke 10-12 mm- Schwarz-18-2110S-A.0

Paar

18.2110S-A.0

1 pair of rubber rings | for 10.00 mm | Model 230P

Available, : Lieferzeit 1-2 Werktage

$0.74*

Tip

Gummieinlage fuer Glashalter - Glas 10-76-12-76 mm - Schwarz-18-2111S-A.0

Paar

18.2111S-A.0

1 pair of rubber rings | for 10.76 mm | Model 230P

Available, : Lieferzeit 1-2 Werktage

$0.74*

Tip

Stk

13.2000-A.4

Fixing screw | Thread: M8x20 mm | For glass clamp | V2A

Fixing screw | Thread: M8x20 mm | For glass clamp | V2A [ Technical details ] made of stainless steel 1.4301/V2A/AISI 304 [ Specific details ] Dimensions: M8x20 mm

Available, : Lieferzeit 1-2 Werktage

$0.78*

Tip

Paar

13.2001-A.0_BLACK

1 pair of cover plates | for clamping screws in glass clamps | PVC, matt black

1 pair of cover plates | for clamping screws in glass clamps | PVC MATT BLACK [ Technical details ] made of PVC [ Specific details ] for covering the clamping screws in the glass clamps / sheet metal clamps

Available, : Lieferzeit 1-2 Werktage

$0.28*

89.11APVD230P000SET4-A.4

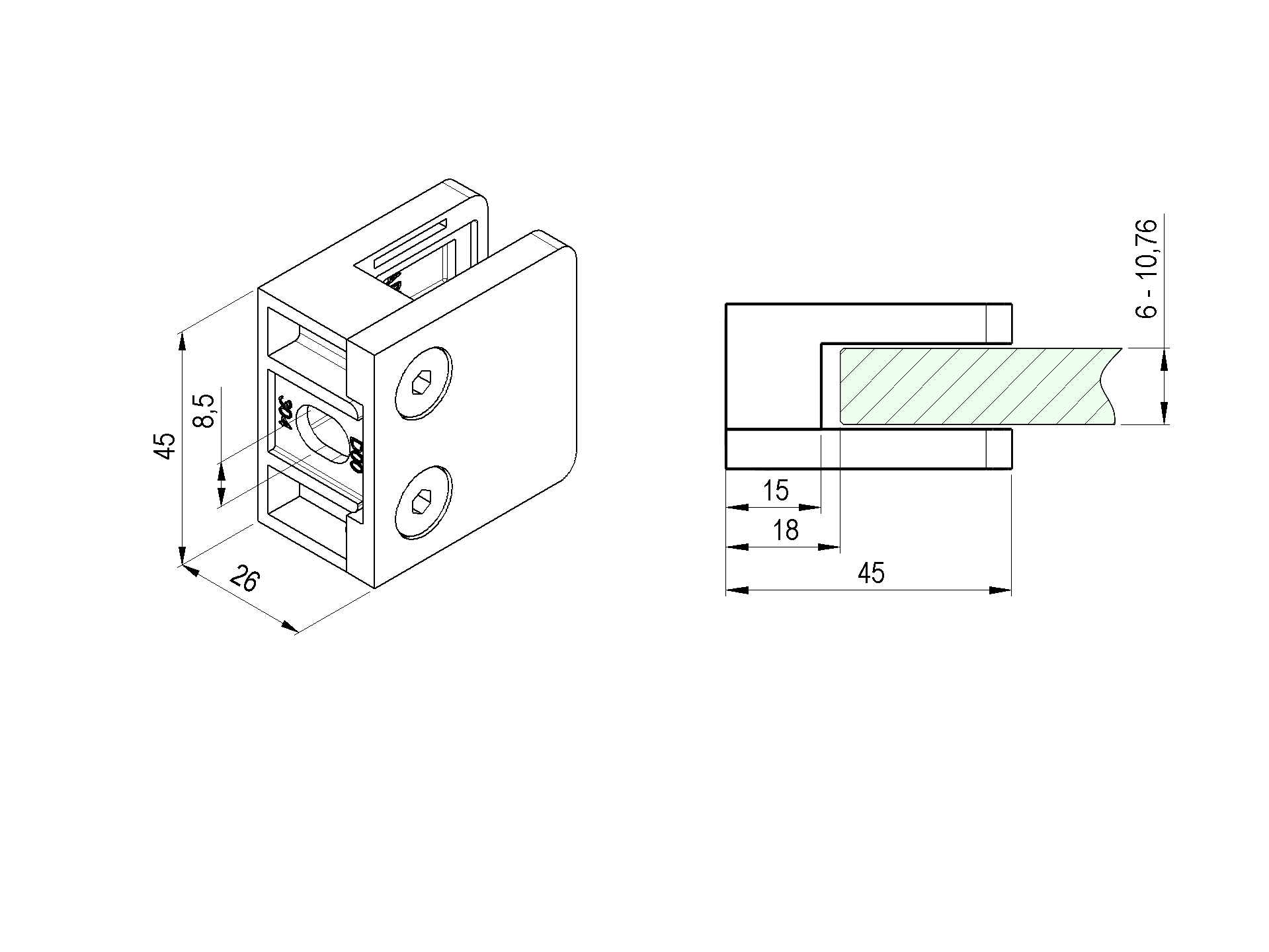

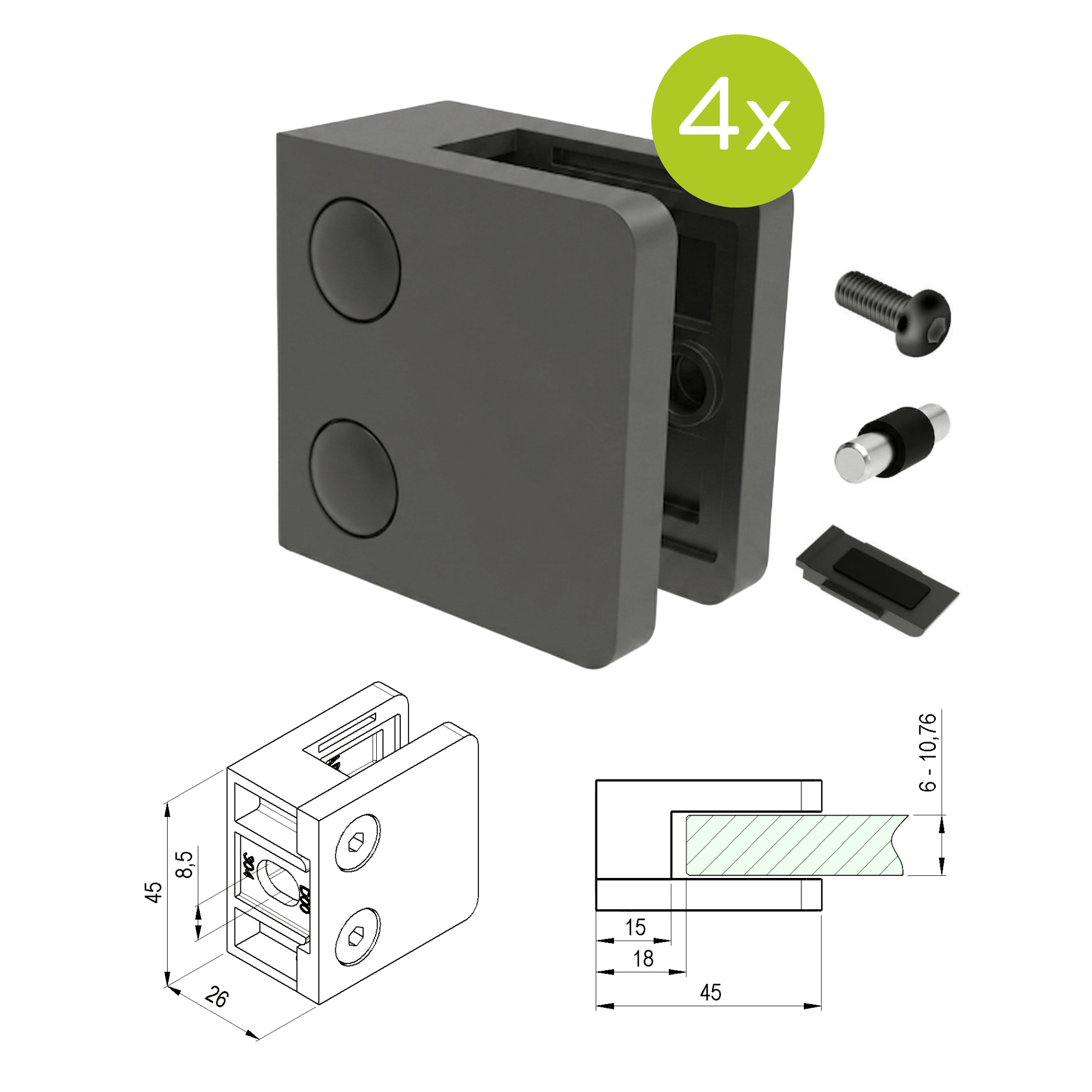

V2A glass clamp for 6–10.76 mm glass, flat connection, black PVD, set of 4

Glass clamp for glass and sheet metal infills (set of 4) This set of four Model 230P glass clamps is the ideal solution for securely and stylishly fixing glass or sheet metal panels to railings, balconies or staircases. The clamps are designed for mounting on flat surfaces such as square posts or walls. Made from robust V2A stainless steel and finished with a durable black PVD coating, they offer not only a reliable hold but also a modern, attractive appearance. Versatile applications The clamps are ideal for use in modern architectural projects where safety and aesthetics are paramount. They can be used flexibly for various panel thicknesses and, thanks to their design, ensure a permanently stable connection. The black finish adds an elegant touch and fits perfectly with contemporary designs. Technical details Product type: Glass clamp / Glass holder Material: V2A stainless steel (AISI 304) Surface: PVD-coated, black Connection: For flat posts/wall mounting Suitable glass thickness: 6 mm, 6.76 mm, 8 mm, 8.76 mm, 10 mm, 10.76 mm Suitable sheet thickness: 1.5 mm, 2 mm, 3 mm, 4 mm, 5 mm Model: 230P Contents The set is supplied ready for installation and includes all necessary screws. Please note that the rubber seals for the respective glass thickness must be purchased separately. 4x glass holders (unassembled) 8x A2 DIN7991 M6x16 screw 8x PVC cover cap, grey 4x A2 DIN 7380 M8x20 screw

Available, : Lieferzeit 10-13 Werktage

$66.24*

89.ABLACK230P042SET4

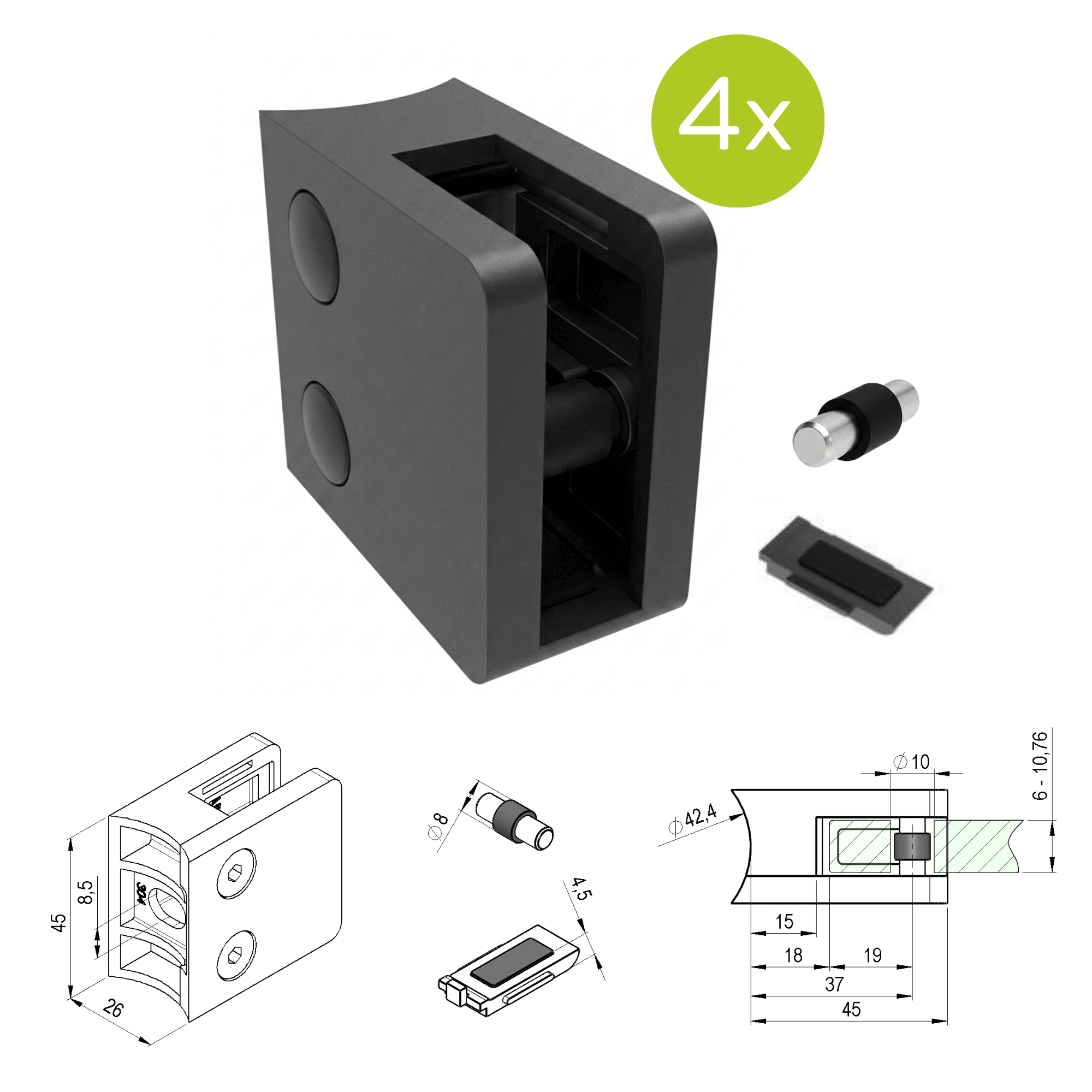

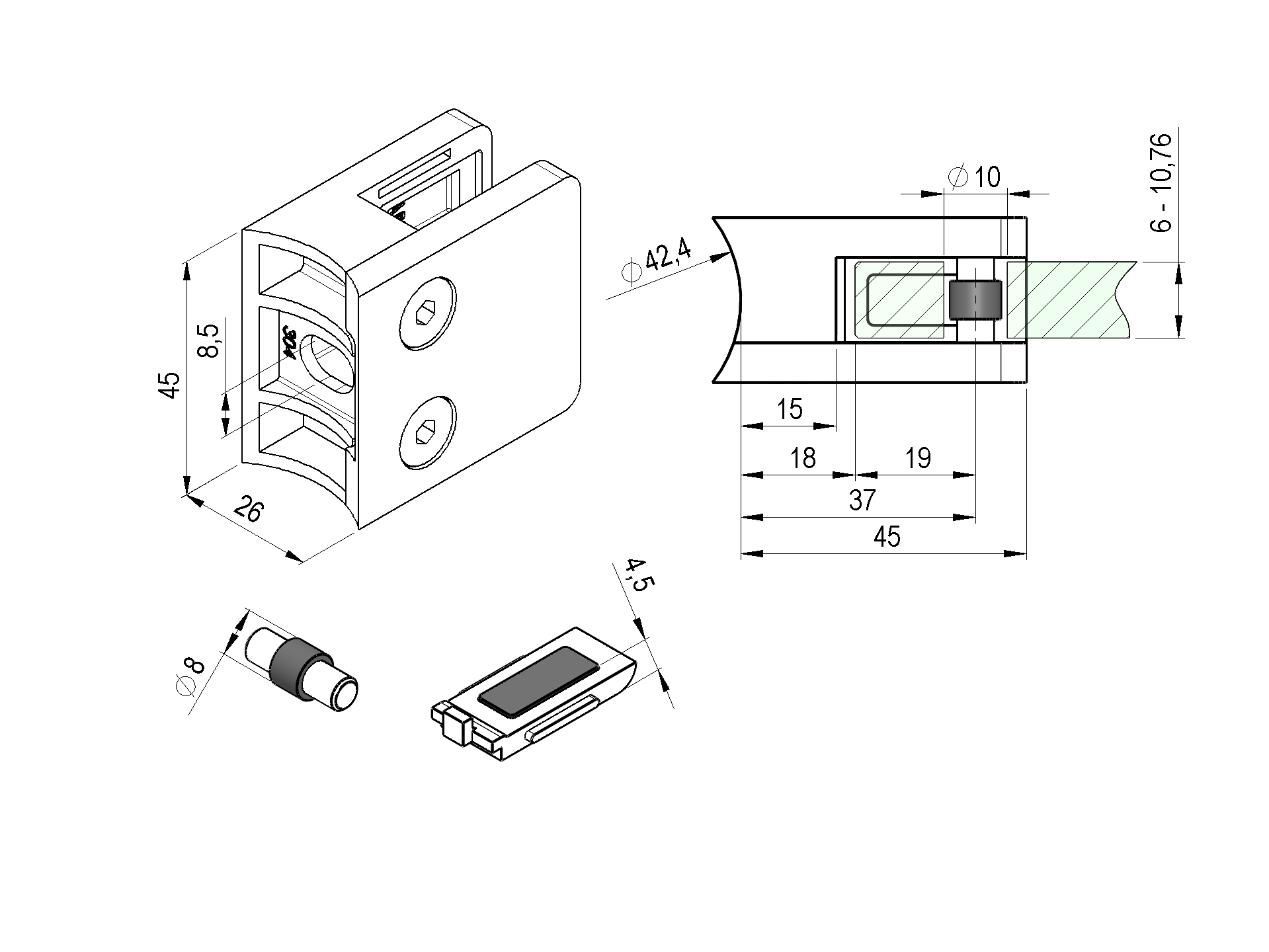

V2A glass clamp for 42.4 mm diameter tubing, black powder-coated, set of 4

Set of 4 glass clamps for round tubes – stylish and secure This set of four high-quality glass clamps is the ideal solution for installing glass or panel infills on railings with round posts. Made from robust V2A stainless steel and finished with an elegant black powder coating (RAL 9004), these clamps combine durability with modern design. The semi-circular shape ensures a perfect fit on tubes with a diameter of 42.4 mm and guarantees a stable and secure fixing of your railing infill. Technical details at a glance Product type: Glass clamp (Model 230P) Material: V2A stainless steel (AISI 304) Surface: Powder-coated Colour: Black (RAL 9004) Connection: For round tube with Ø 42.4 mm Suitable glass thicknesses: 6 mm, 6.76 mm, 8 mm, 8.76 mm, 10 mm, 10.76 mm (matching rubber inserts must be purchased separately) Applications and benefits Thanks to the corrosion-resistant V2A stainless steel, these glass holders are ideal for both indoor and outdoor use. They are the perfect choice for balcony railings, stair railings or patio enclosures. The supplied fixing materials make installation easy and ensure a secure hold.

Available, : Lieferzeit 10-13 Werktage

$57.88*

89.11ABL230P042SET4-A.4

V2A glass holder, powder-coated black, for 42.4 mm tubes, set of 4

Glass holders in a handy set of four This set contains four sturdy glass holders, made from durable V2A stainless steel. The surface features a high-quality powder coating in deep black (RAL 9005), which not only offers a modern look but also provides additional protection against the elements. The holders are specially designed for mounting on round balusters with a diameter of 42.4 mm and are ideal for constructing stylish and safe railings for both indoor and outdoor use. Technical details at a glance Product type: Glass holder (glass clamp) Material: V2A stainless steel (AISI 304) Surface: Powder-coated Colour: Black (RAL 9005) Connection: For round tube with ø 42.4 mm Suitable glass thickness: 6 mm to 10.76 mm (suitable seals required) Fastening: Clamp connection with optional locking pin Application and installation The glass holders are ideal for securing glass, sheet metal or other panel materials. Thanks to the screw set supplied, quick and easy installation directly onto the baluster is possible. The semi-circular contact surface ensures a perfect and stable fit on the tube. Please note that the appropriate seals for your glass thickness must be ordered separately to ensure optimum hold and protection of the glass. Contents of the set 4x Glass holders Model 230P, black 8x countersunk screw A2 DIN7991 M6x16 8x PVC screw caps, black 4x pan-head screw A2 DIN 7380 M8x20

Available, : Lieferzeit 10-13 Werktage

$57.78*

89.11ADRILLM8-A.4

Bohrer für rostfreien Stähl mit Gewinde, M8x1.25mm

Available, : Lieferzeit 5-10 Werktage

$18.96*
