V2A glass holder, powder-coated black, for 42.4 mm tubes, set of 4

FeNau Ltd

Glashalter V2A pulverbeschichtet schwarz fuer Rohr 42-4 mm 4er Set-89-11ABL230P042SET4-A.4

$57.78*

Prices include VAT, plus delivery charges

Available now, delivery time: Lieferzeit 10-13 Werktage

Stock: 23

Product number: 89.11ABL230P042SET4-A.4

Weight: 0.75 kg

20,000 items in stock

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

Product information "V2A glass holder, powder-coated black, for 42.4 mm tubes, set of 4"

Glass holders in a handy set of four

This set contains four sturdy glass holders, made from durable V2A stainless steel. The surface features a high-quality powder coating in deep black (RAL 9005), which not only offers a modern look but also provides additional protection against the elements. The holders are specially designed for mounting on round balusters with a diameter of 42.4 mm and are ideal for constructing stylish and safe railings for both indoor and outdoor use.

Technical details at a glance

Product type: Glass holder (glass clamp)
Material: V2A stainless steel (AISI 304)
Surface: Powder-coated
Colour: Black (RAL 9005)
Connection: For round tube with ø 42.4 mm
Suitable glass thickness: 6 mm to 10.76 mm (suitable seals required)
Fastening: Clamp connection with optional locking pin

Application and installation

The glass holders are ideal for securing glass, sheet metal or other panel materials. Thanks to the screw set supplied, quick and easy installation directly onto the baluster is possible. The semi-circular contact surface ensures a perfect and stable fit on the tube. Please note that the appropriate seals for your glass thickness must be ordered separately to ensure optimum hold and protection of the glass.

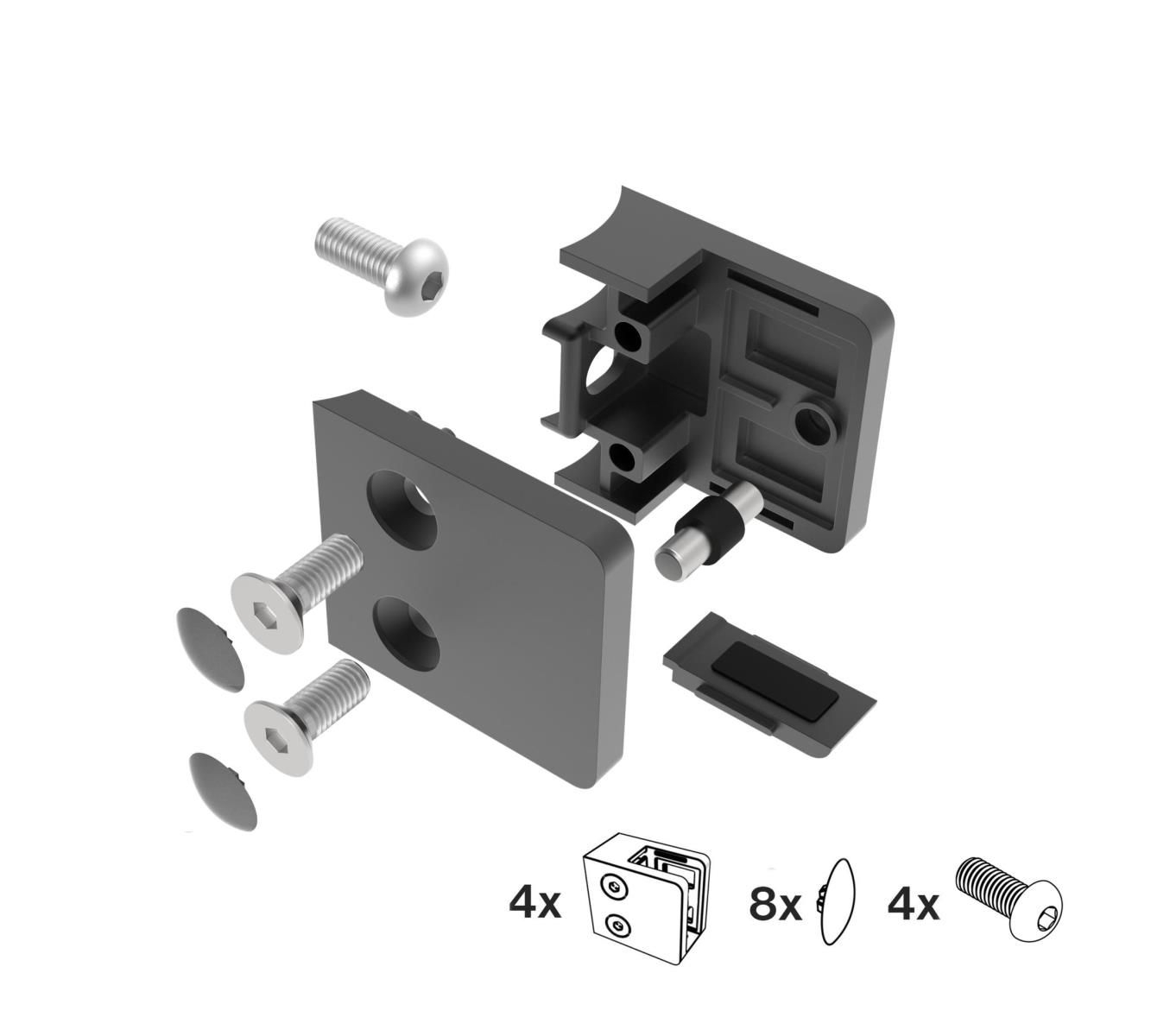

Contents of the set

4x Glass holders Model 230P, black
8x countersunk screw A2 DIN7991 M6x16
8x PVC screw caps, black
4x pan-head screw A2 DIN 7380 M8x20

Höhe:	45 mm
Länge:	45 mm
Werkstoff:	V2A
Ø Für Rohr \| Ø Außendurchmesser \| Ø Anschluss:	42,4 mm
Breite:	26 mm
